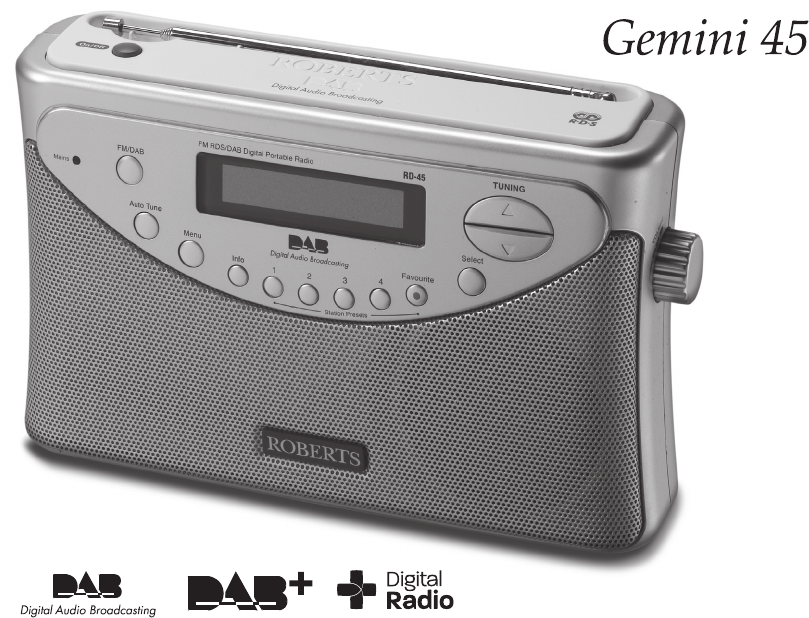

DAB/DAB+/FM RDS digital radioPlease read this manual before useROBERTSRD-45

91Finding new stations - DABAs time passes new stations may become available. To fi nd new stations proceed as follows:-1. Press and release the Auto

10Manual Tuning - DABManual tuning allows you to tune directly to the various DAB Band III channels. UK DAB stations located in the range 11B to 12D.

111Dynamic Range Control (DRC) settings - DABDRC can make quieter sounds easier to hear when your radio is used in a noisy environment. 1. Press and

12Prune stations - DABOver time, some DAB services may stop broadcasting, or may change location and then not be able to receive a station. In order t

13Operating your radio - FM 1. Carefully extend the telescopic aerial.2. Press and release the On/Off button to switch on your radio. 3. Press and

Manual tuning - FM1. Press and release the On/Off button to switch on your radio.2. Press and release the DAB/FM button to select the FM mode. Fully

15Display options - FMYour radio has a range of display options for the FM mode:-The Radio Data System (RDS) is a system in which inaudible digital in

Presetting stationsThere are 4 memory presets for each of the two wavebands which allow you to quickly tune the radio to your favourite stations. Pres

17Favourite station buttonYour radio has a Favourite Station button which can automatically select the required waveband and tune to your favourite st

18Language functionYour radio can be confi gured to a different language.1. Press and release the On/Off button to switch on your radio.2. Press and

Controls ... 2-3Battery operation ...

19Software versionThe software display cannot be altered and is just for your reference.1. Press and release the On/Off button to switch on your radi

20System resetIf your radio fails to operate correctly, or some digits on the display are missing or incomplete carry out the following procedure.1.

21Headphone socket A 3.5mm Headphone Socket located on the rear of your radio is provided for use with either headphones or an earpiece. Inserting a p

22GeneralDo not allow this radio to be exposed to water, steam or sand. Do not leave your radio where excessive heat could cause damage such as in a p

Issue 4ROBERTS RADIO LIMITED PO Box 130MexboroughSouth YorkshireS64 8YTWebsite: http://www.robertsradio.com© 2008, 2014 Roberts Radio LimitedGuarantee

2OnDAB/FMDAB/DAB+/FM RDS Digtial Portable RadioControls 1. Telescopic aerial 2. On / Off button 3. On indicator 4. DAB/FM button 5. Auto Tune button

3Controls 15. Headphone socket 16. Line out socket17. DC jack socket191518. USB socket (for service use only)19. Battery compartment(Back)1617 18

4Battery operation1. Remove the battery cover on the back of the unit by sliding the cover in the direction of the arrow.2. Insert six LR14 (C size)

Using the AC adaptor1. Insert the adaptor plug into the DC in socket on the rear of your radio. 2. Plug the adaptor into a standard mains socket out

6Operating your radio - DAB1. Carefully extend the telescopic aerial.2. Press and release the On/Off button to switch on your radio. The On indicato

7Selecting a station - DAB1. The top line of the display shows the name of the station currently selected.2. If required, press and release the DAB/

8Display options - DABYour radio has a range of display options when in DAB mode:-1. Press and release the Info button to cycle through the various o
